Screen Wiring and Configuration

Screen Wiring

TFT Resistive Touch Screen Wiring

TFT Resistive Touch Screen Wiring

tip

• The TFT screen package includes two FPC cables, one is 14P (narrow) and the other is 16P (wide)
• Please use the 14P (narrow) cable for resistive touch screens!!!

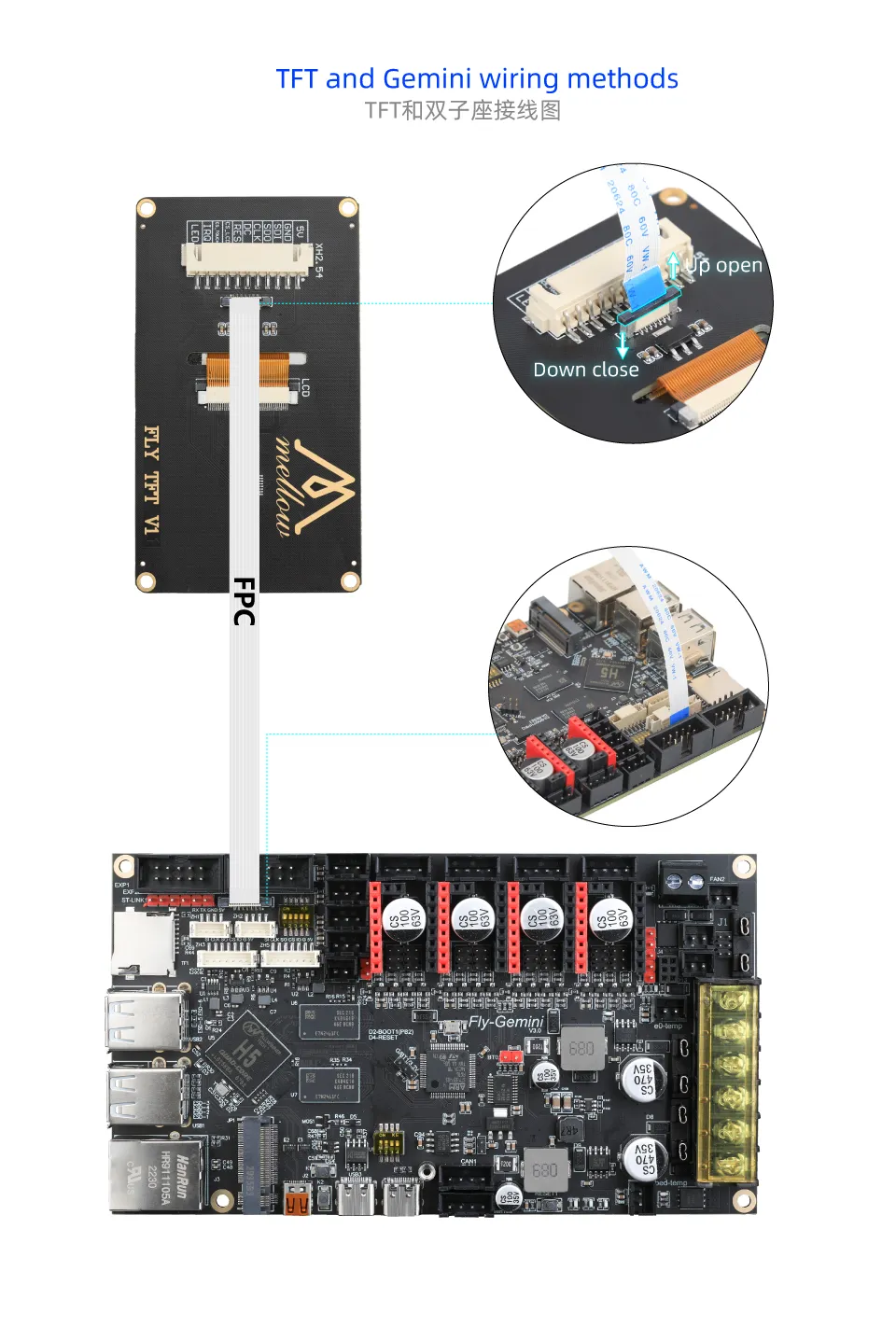

FLY-Gemini TFT V1 Resistive Touch Screen Wiring

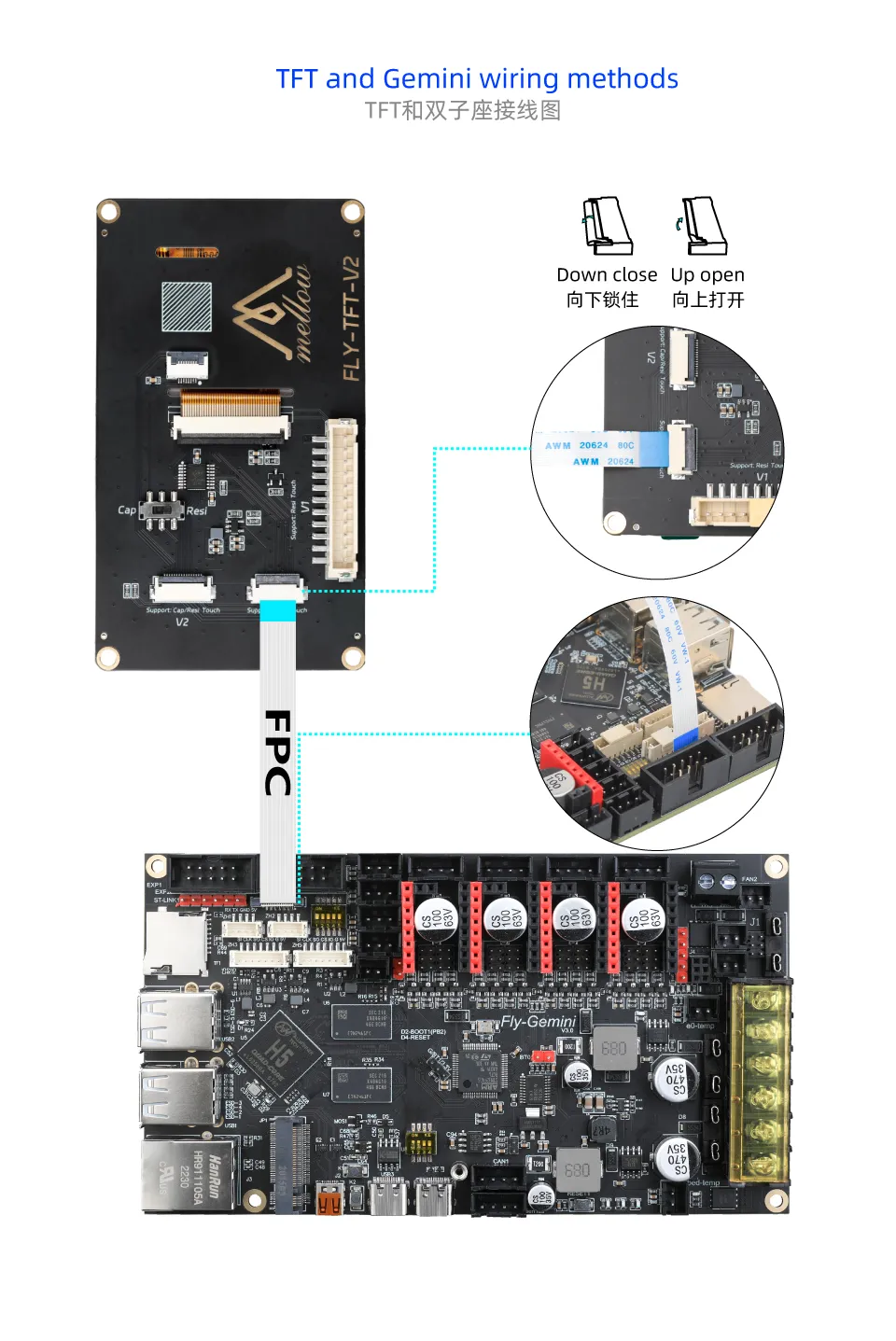

FLY-Gemini TFT V2 Resistive Touch Screen Wiring

TFT V1 Wiring with Ribbon Cable

TFT Resistive Touch Screen Wiring

tip

• Pay attention to the cable pinout!

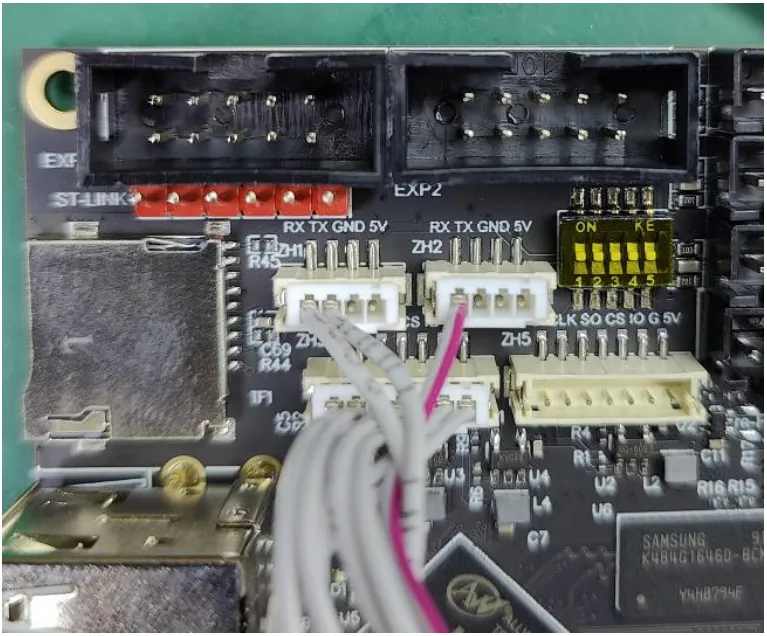

1. Install the TFT screen

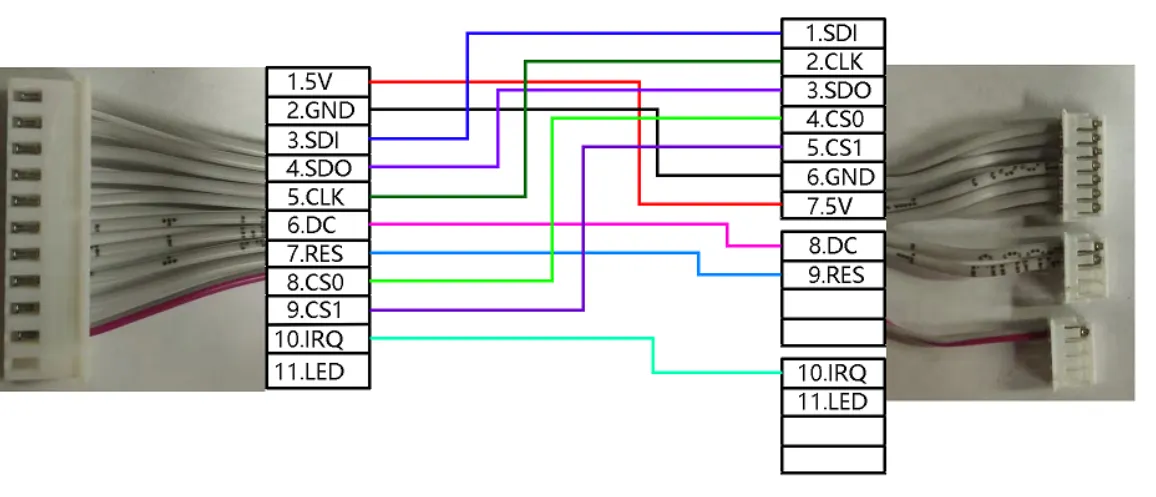

Pinout

Connection method

HDMI Wiring

HDMI Wiring

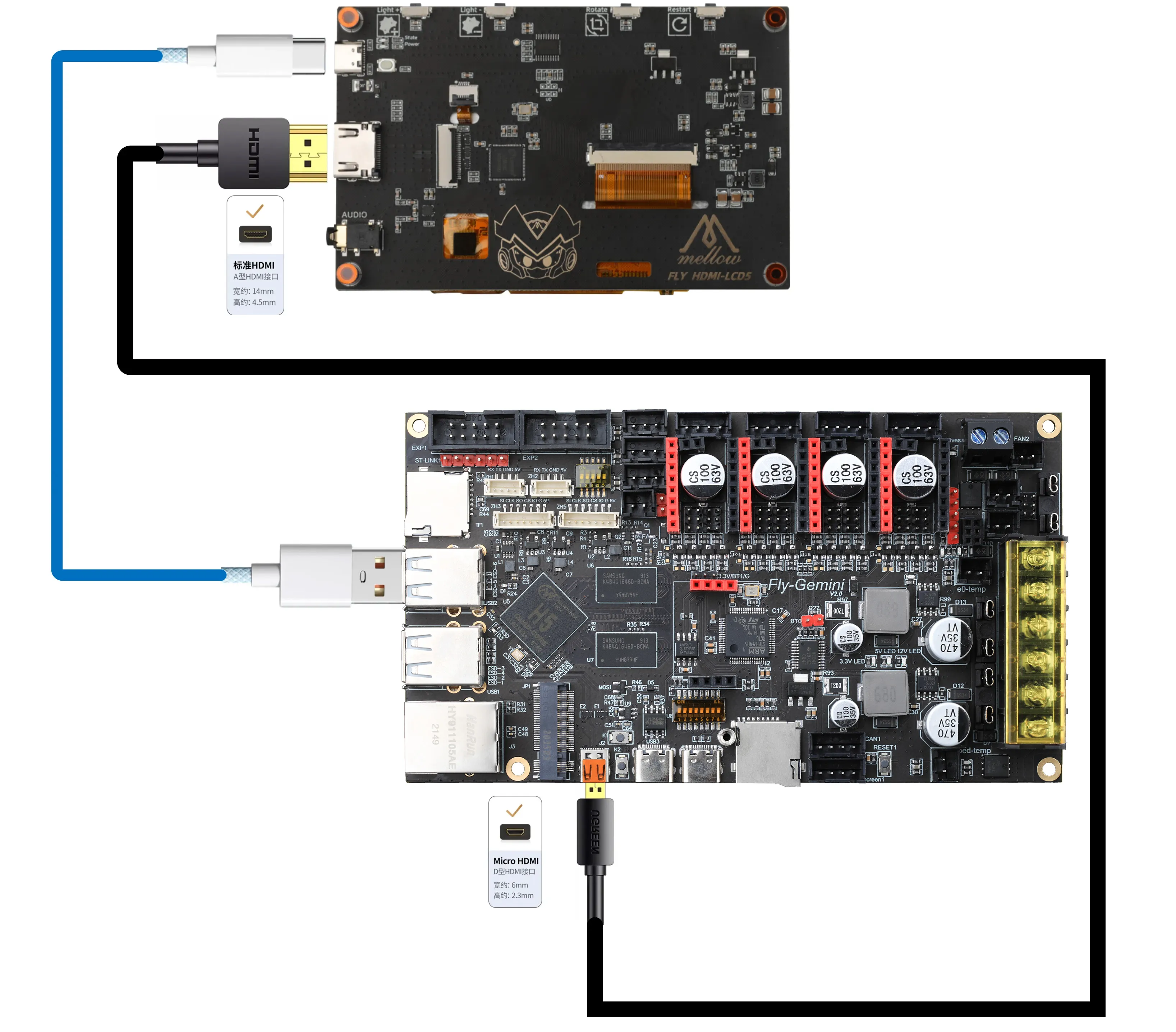

1. FLY-HDMI-LCD5 screen wiring

---

Screen Configuration

FLYOS-FAST System - Screen Configuration

FLYOS-FAST System - Screen Configuration

1. Open the device IP address in the browser, for example: http://192.168.6.110/

   For fluidd, as shown in the figure: Uncheck -> Filter hidden files and folders.

   For mainsail, as shown in the figure: Check -> Show hidden files.

2. At this point, you can see the .flyos-config folder. Enter this folder and you will find a sys-config.conf file.

3. Open the sys-config.conf file, modify the required configuration items, then Save -> Close.

warning

• For HDMI screen, set to: hdmi. Note that there must be no space after the = sign!!!
• For resistive touch screen, set to: fly-tft-v1. Note that there must be no space after the = sign!!! Also ensure the switch on the back of the screen is set to Resi
• For klipper_screen, set to: 1. Note that there must be no space after the = sign!!!
• Note: The configuration format in the sys-config.conf file must be key=value. Do not change the format!!! Otherwise the configuration will not take effect!!!

4. After saving the changes, restart the system to take effect.

FLYOS-Armbian System - Screen Configuration

FLYOS-Armbian System - Screen Configuration

info

• Connect the host computer to WiFi and obtain its IP address. Then enter IP+:9999 in the browser to access FLY TOOLS for screen configuration
• For example, if your host computer's IP address is 192.168.6.110, you need to enter 192.168.6.110:9999 in the browser

1. Open FLY TOOLS. Follow the steps shown in the figure below to enable Klipper Screen, select the screen model, and click the pink button at the bottom right corner Save Configuration. Restart the host computer to apply the changes!

warning

• For resistive touch screen, select: fly-tft-v1. Ensure the switch on the back of the screen is set to Resi
• For hdmi screen, select: hdmi

Resistive Touch Screen:

HDMI Screen:

2. After saving the configuration, restart the host computer to apply the changes!

---
