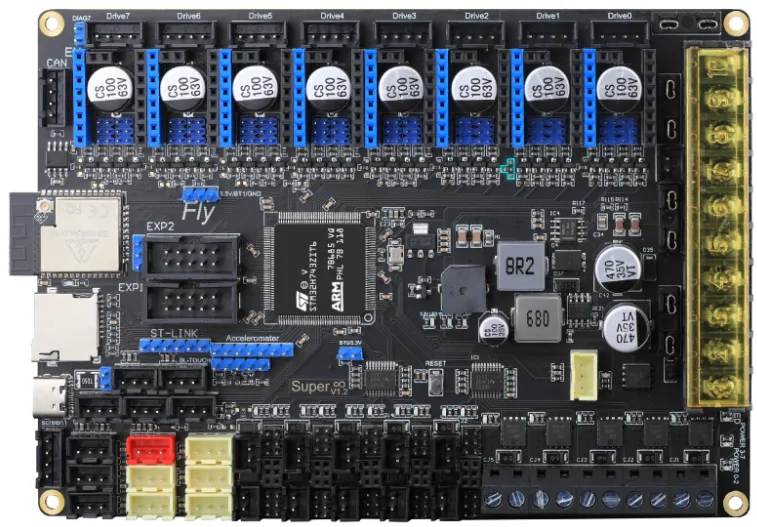

Super8 Pro

Product Parameters

Adopts a 32-bit ARM Cortex-M7 series STM32H723ZGT6 main control chip with a main frequency of 550 MHz
Firmware: Marlin 2.0/Reprap/Klipper
Driver support: A4988, LV8729, DRV8225, TMC2208/2209/5160, etc.
Driver mode support: TMC: UART/SPI
8 high-voltage driver slots, supports 8 independent motor drivers, 5 extruders, 10 PWM fans
Display: Serial touch screen, mini12864 LCD, 12864 LCD, 2004 LCD, FLY 4.3/7.0 V1
1 high-voltage IN port, supports auto bed leveling sensors: BLTouch, PL08N and other proximity sensors, Klicky, Voron Tap, etc.
Optional limit switch power: 5V/12V/24V
When using Reprap firmware, the onboard ESP32 WiFi module can be used, supporting 1.6m/s
Unique PWM Fan MOS board design, can be directly replaced if damaged, reducing customer repair difficulty, two 2-pin fan connectors can support 4-pin PWM fans
PCB adopts 2OZ copper thickness, capable of supporting higher current
6 ADC interfaces, supports up to six thermistor channels
8 IO interfaces, can be used for leveling and limit switches
5 heater cartridge interfaces, supports up to five heater cartridge channels
2 PWM interfaces

Output Port	Maximum Current at 24V Power Supply	Maximum Current at 12V Power Supply
Heated Bed Port	15A	7.5A
Heating Port	6A	3A
Fan Port	1A	0.5A
