BL Firmware

Tip
  • Please note that the factory has already pre-flashed the bootloader, no need to flash it again

Entering Flash Mode​

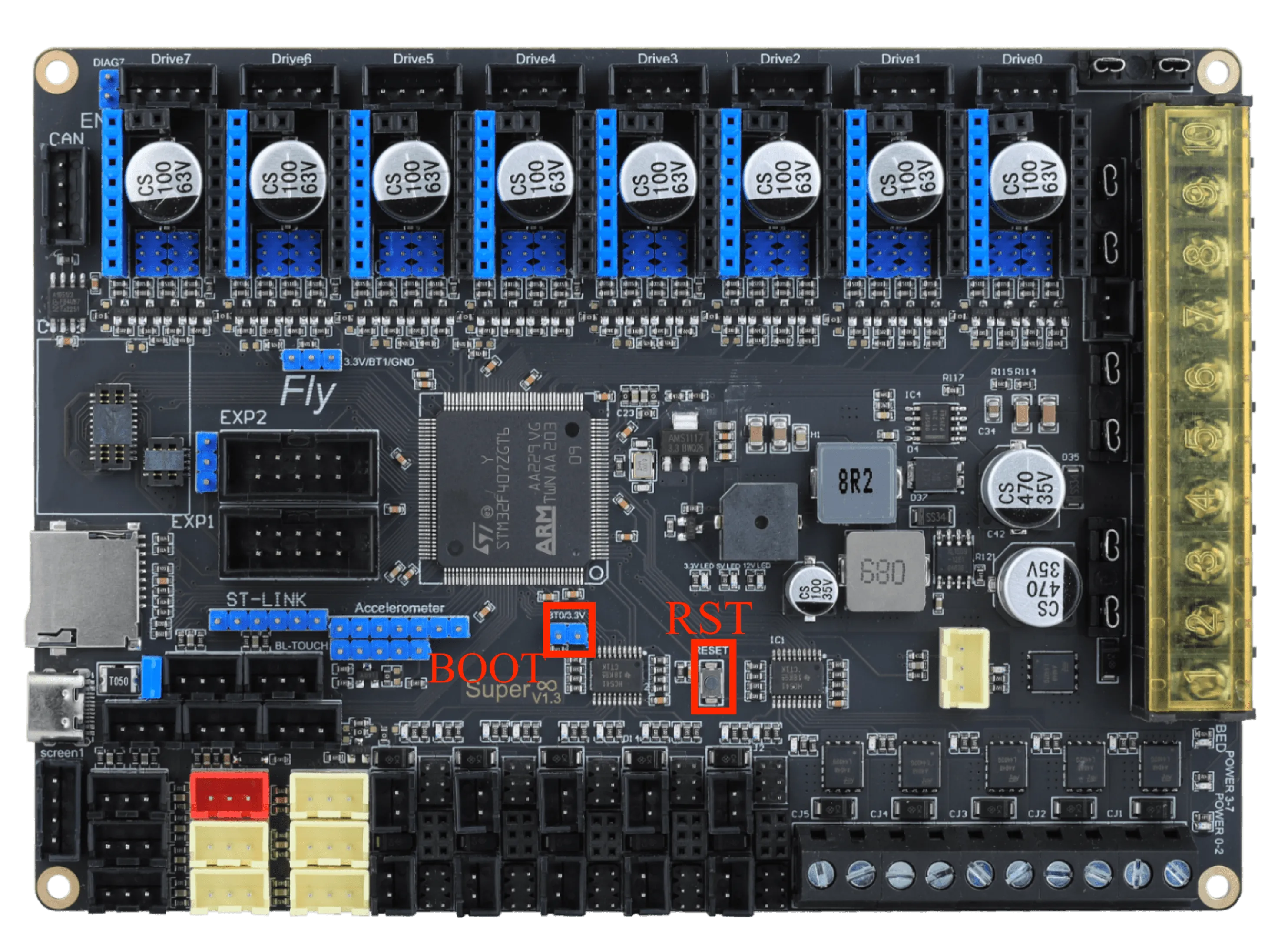

  • There are two methods to enter flash mode
  • First method: With the tool board completely powered off, short-circuit the BOOT button, then connect one end of a data-capable TYPE-C cable to the motherboard and the other end to your device
  • Second method: After connecting one end of a data-capable TYPE-C cable to the motherboard and the other end to your device, short-circuit the BOOT button, then press the RST button, release the RST button, and finally release the BOOT button
    Loading...

Flashing Firmware​

  • SUPER8 bootloader firmware
  • You can obtain the firmware via the following link:
  • You can obtain the firmware via the following link:
  • The firmware is located at
FLY-Firmware/MainBoard/SUPER
Notice

To ensure successful STM32 flashing, please note the following:

  • The USB port on some computers may cause unstable flashing due to driver or signal compatibility issues. It is recommended to try a different USB port for connection.
  • If changing ports does not work, an effective solution is to connect via an external USB hub, which often improves compatibility.
  • When the flashing software reports the error shown below, please also prioritize trying a USB hub. If the issue persists, check or use the host computer for flashing.
    Loading...
  1. Flashing tool Download Link
  2. You need to download SetupSTM32CubeProgrammer and STM32 DFU Driver
  3. Download the firmware to any directory on your computer
  4. Connect the motherboard to the computer using a Type-C cable, ensuring it has entered dfu flashing mode
  5. In STM32CubeProgrammer, select USB mode, refresh, and connect
    Loading...
  6. If no error popup appears, the connection is successful.
    Loading...
  7. Click the download icon on the left and check the following options
    Loading...
  8. Click Browse as indicated by the arrow, then select the firmware you need to flash
    Loading...
  9. Set Start address to 0x08000000
    • Note: If the firmware is in HEX format, please skip this step!!
    Loading...
  10. Click Start automatic mode below to begin flashing the firmware
    Loading...
  11. The following prompt indicates that the firmware flashing is complete
    Loading...
