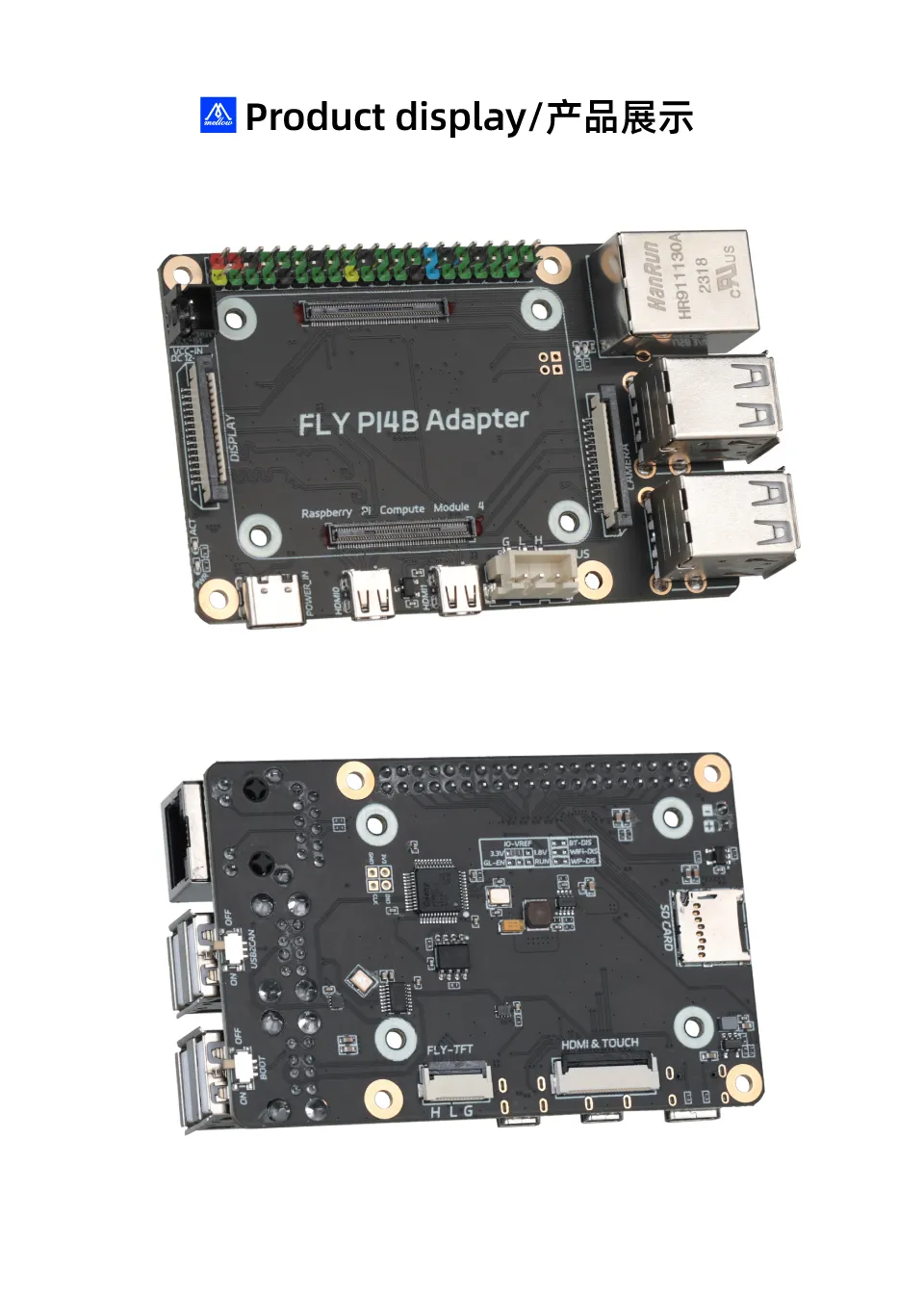

FLY-CM4 Carrier Board

Fly-CM4 is fully compatible with Raspberry Pi 3B and 4B, and is specially improved for Raspberry Pi CM4 expansion. This expansion board provides a complete set of functions optimized for 3D printers. The 12-24V DC power supply ensures power stability, which is crucial for precise control and continuous operation of 3D printers. It supports FLY-TFT and Fly-HDMI screen FPC cable connection functions, providing a more convenient wiring method. It provides a CAN port, allowing the host computer to connect directly to the lower computer via CAN, which is currently a relatively popular method.

Loading...

Key Highlights​

  • Supports Raspberry Pi CM4 compute module
  • Supports 12V-24V DC power supply
  • Onboard UTOC module
  • Supports one-wire connection for TFT and HDMI
  • Supports DSI/SPI screen interfaces
  • Supports CSI/USB camera interfaces
  • 40PIN expansion interface, compatible with Raspberry Pi

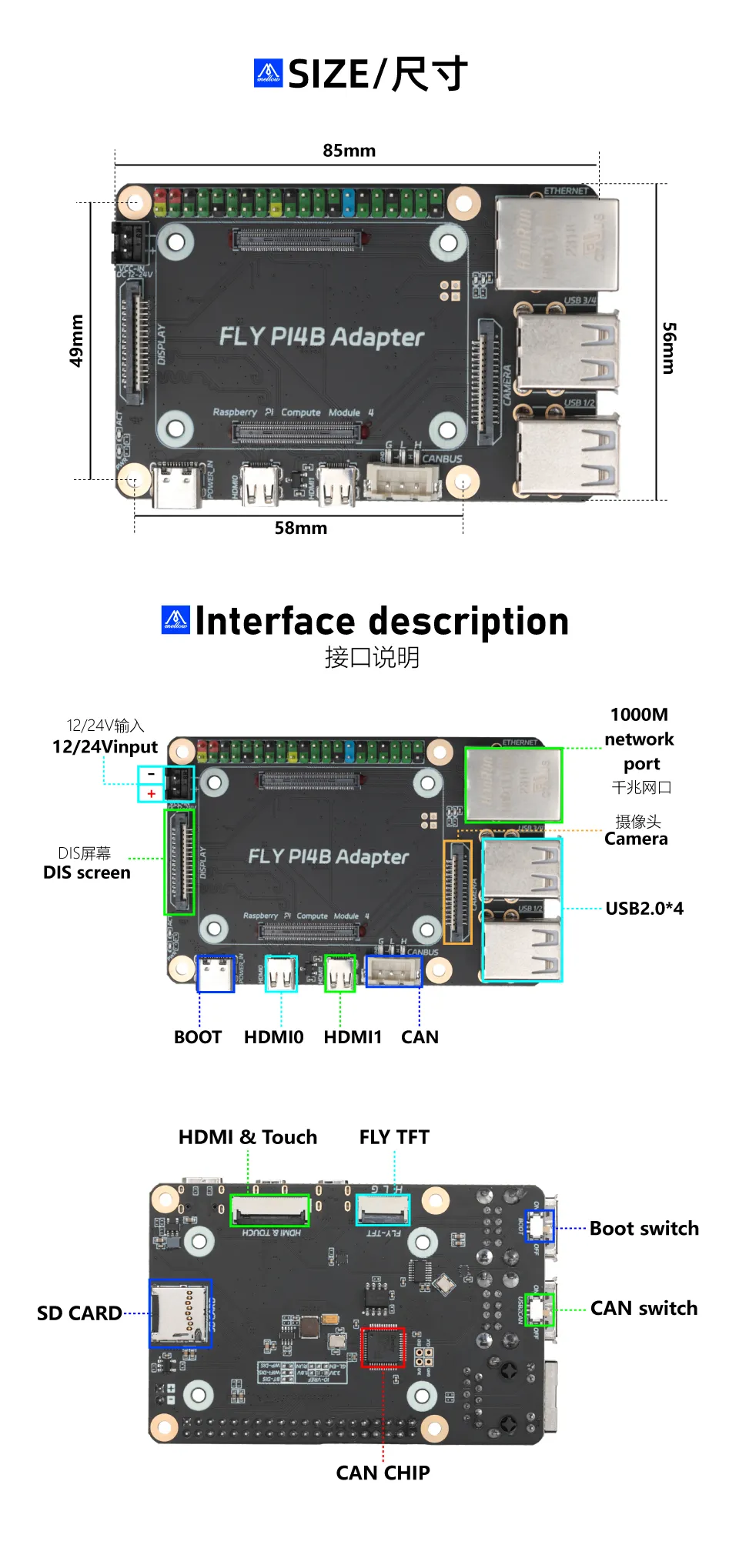

Product Interface Description​

Loading...

Important Notes​

Please read FLY-CM4 Usage Precautions before use to confirm the requirements for the compute module, system, power supply, and interface operation.
