Screen Wiring and Configuration
Screen Wiring

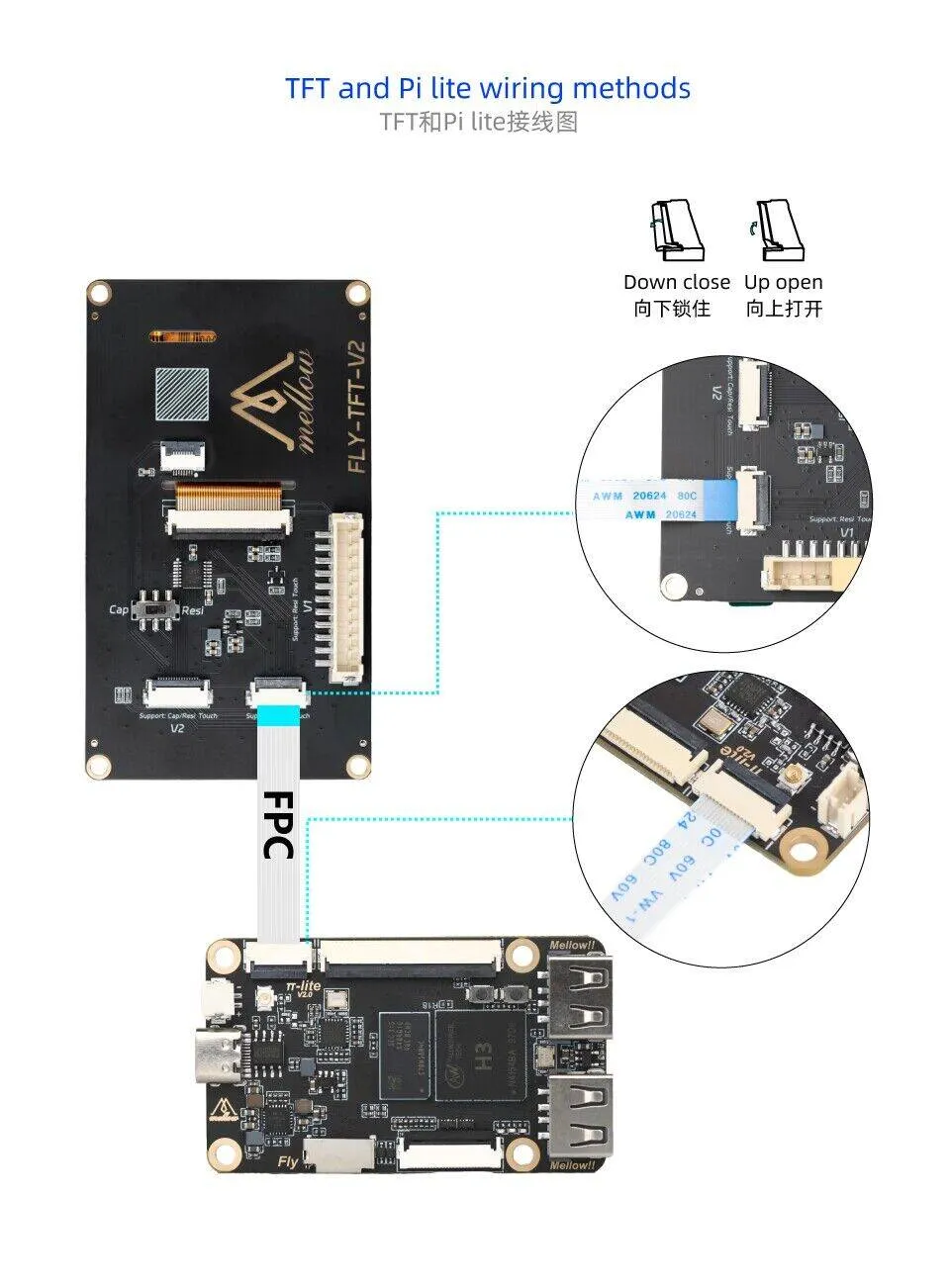

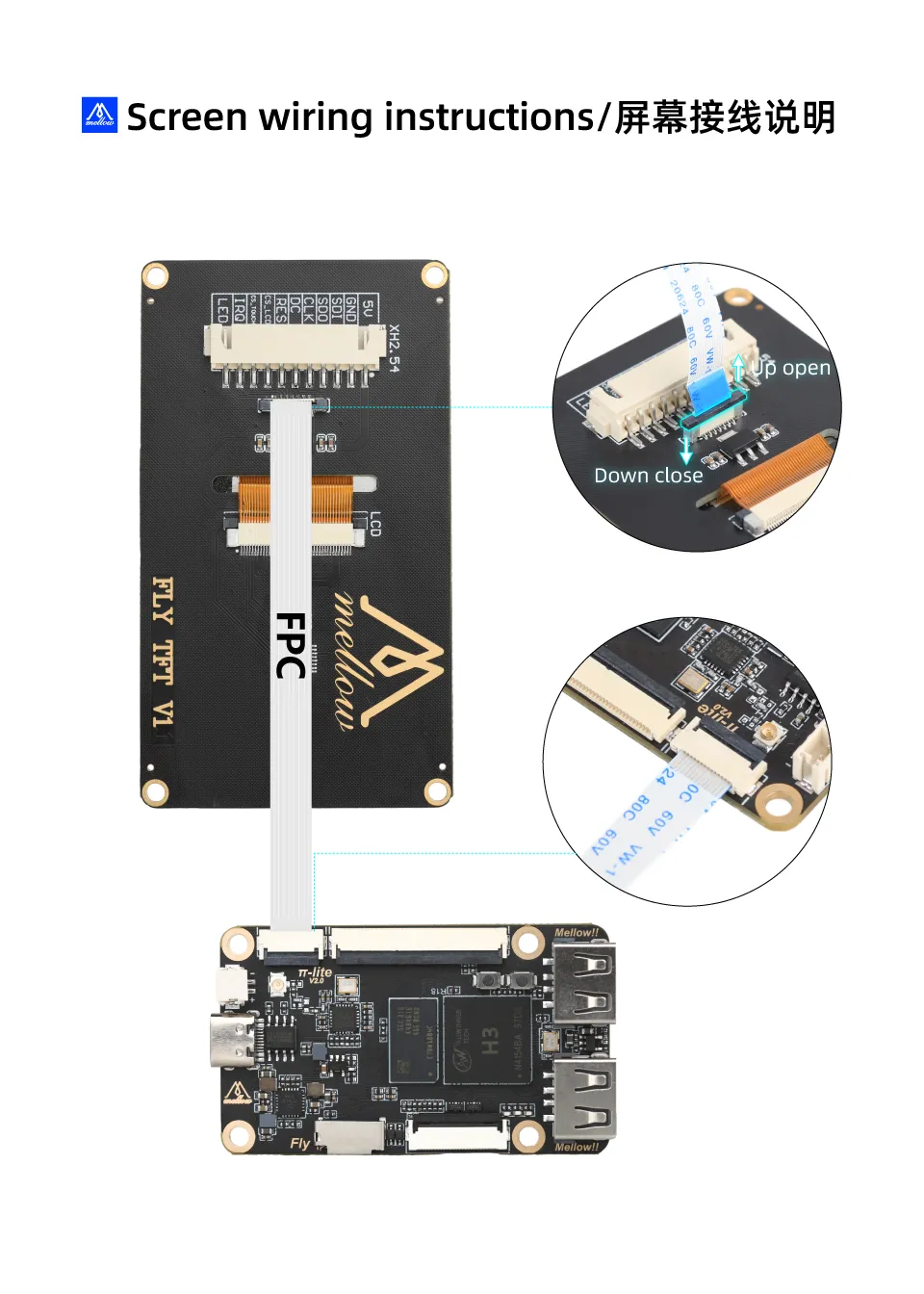

- TFT Resistive Screen Wiring
- HDMI Wiring
Screen Configuration
- FLYOS-FAST System - Screen Configuration
- FLYOS-Armbian System - Screen Configuration
FLYOS-FAST System - Screen Configuration
-
Open the device IP address in the browser, for example:
http://192.168.6.110/For
fluidd, as shown in the figure:Uncheck->Filter hidden files and folders.
For
mainsail, as shown in the figure:Check->Show hidden files.
-
You can now see the
.flyos-configfolder. Enter this folder and you will find thesys-config.conffile.
- Open the
sys-config.conffile, modify the required configuration items, thenSave->Close.
warning
- For
HDMI screen, set to:hdmi. Note that there must be no space after= - For
resistive screen, set to:fly-tft-v1. Note that there must be no space after=, and ensure the screen DIP switch on the back is set toResi - For
klipper_screen, set to:1. Note that there must be no space after= - Note: The format of configuration items in the
sys-config.conffile iskey=value. Do not modify the format!! Otherwise, the configuration will not take effect!!!
- After saving the changes,
reboot the systemto take effect.
FLYOS-Armbian System - Screen Configuration
info
- Connect the host computer to the Wi-Fi and obtain the host IP address. Enter
IP+:9999in the browser to access FLY TOOLS for screen-related configuration - For example, if the host IP address is
192.168.6.110, you need to enter192.168.6.110:9999in the browser

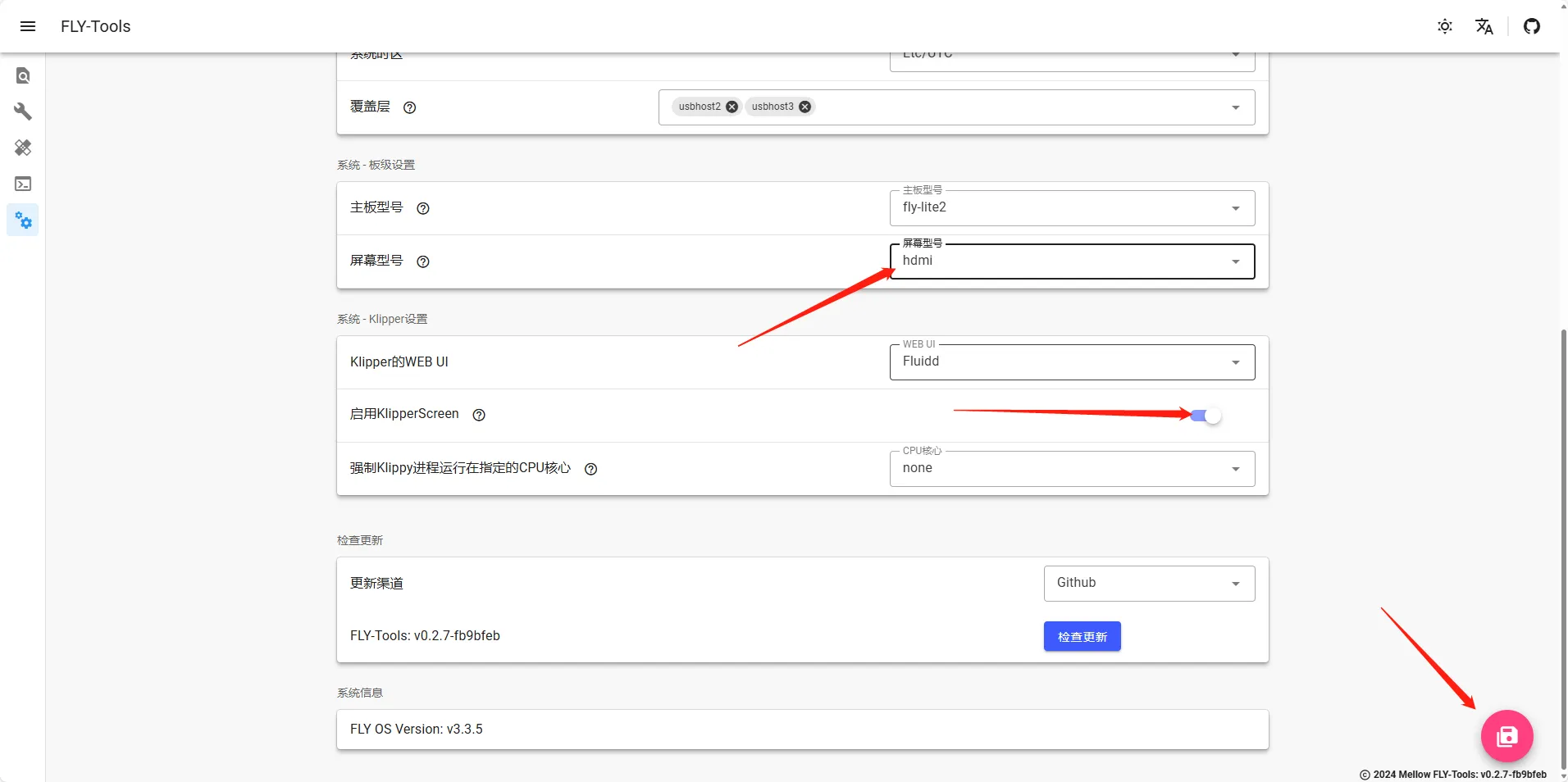

- Open FLY TOOLS. As shown in the figure below,
Enable Klipper Screen,select screen model, click the pink button at the bottom rightSave Configuration, then restart the host computer to take effect!
warning
- For
resistive screen, select:fly-tft-v1. Please ensure the screen DIP switch on the back is set toResi
 |
 |
- After saving the configuration, restart the host computer to take effect!
