Screen Wiring and Configuration

Screen Wiring

Important Safety Notice

• When using the FPC ribbon cable to connect the TFT or HDMI screen, always operate with the device completely powered off to prevent screen damage.
• When connecting the TFT screen, carefully confirm the insertion direction of the FPC ribbon cable to avoid equipment malfunction due to reversed connections.

TFT-V2 Screen Wiring

TFT-V2 Screen Wiring

tip

Important Notes for Connecting and Configuring the TFT Screen

• Ribbon Cable Selection: Two FPC ribbon cables are included in the package: a 14P (narrow ribbon) and a 16P (wide ribbon). The FLY-Pi V3 must use the 16P wide ribbon cable.
• Touch Mode Selection: Set the switch on the back correctly according to the screen type:
• For a resistive screen, switch to the Resi position.
• For a capacitive screen, switch to the Cap position.
• Incorrect settings will cause the touch function to fail.

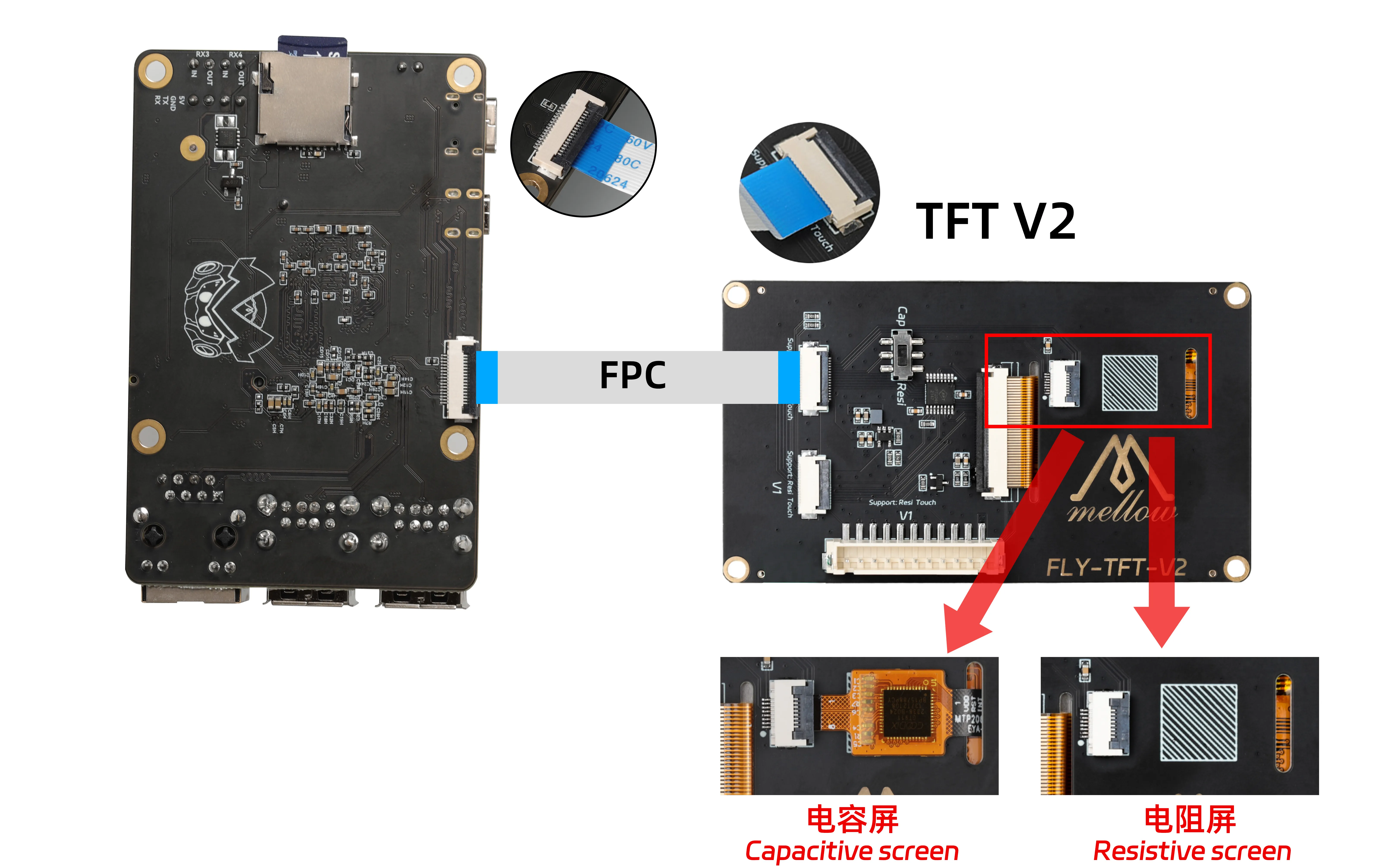

1. FLY-Pi V3 TFT Screen Wiring Diagram

HDMI Wiring

HDMI Wiring

1. FLY-HDMI-LCD5 Screen Wiring Diagram

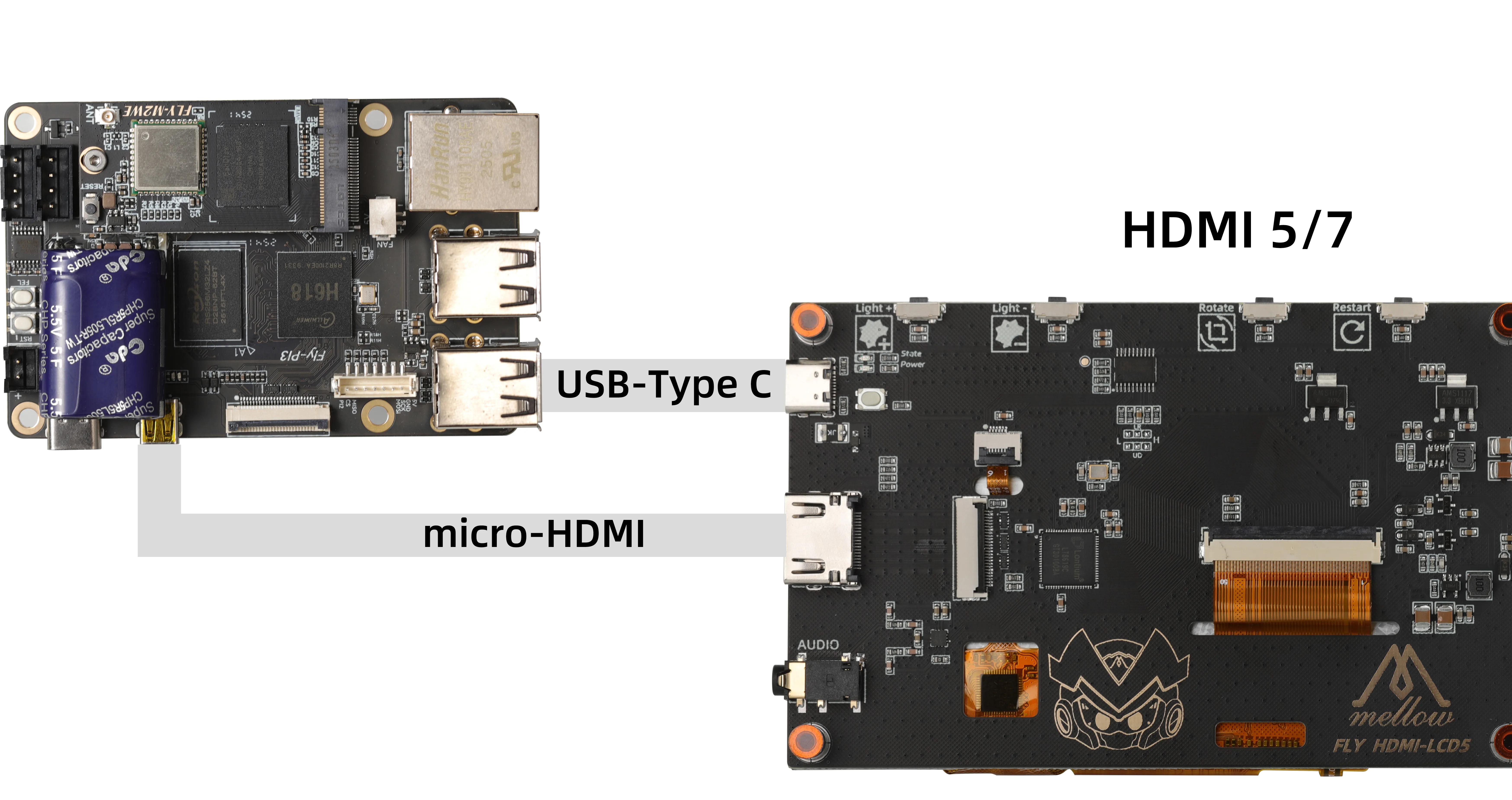

Wiring Method 1

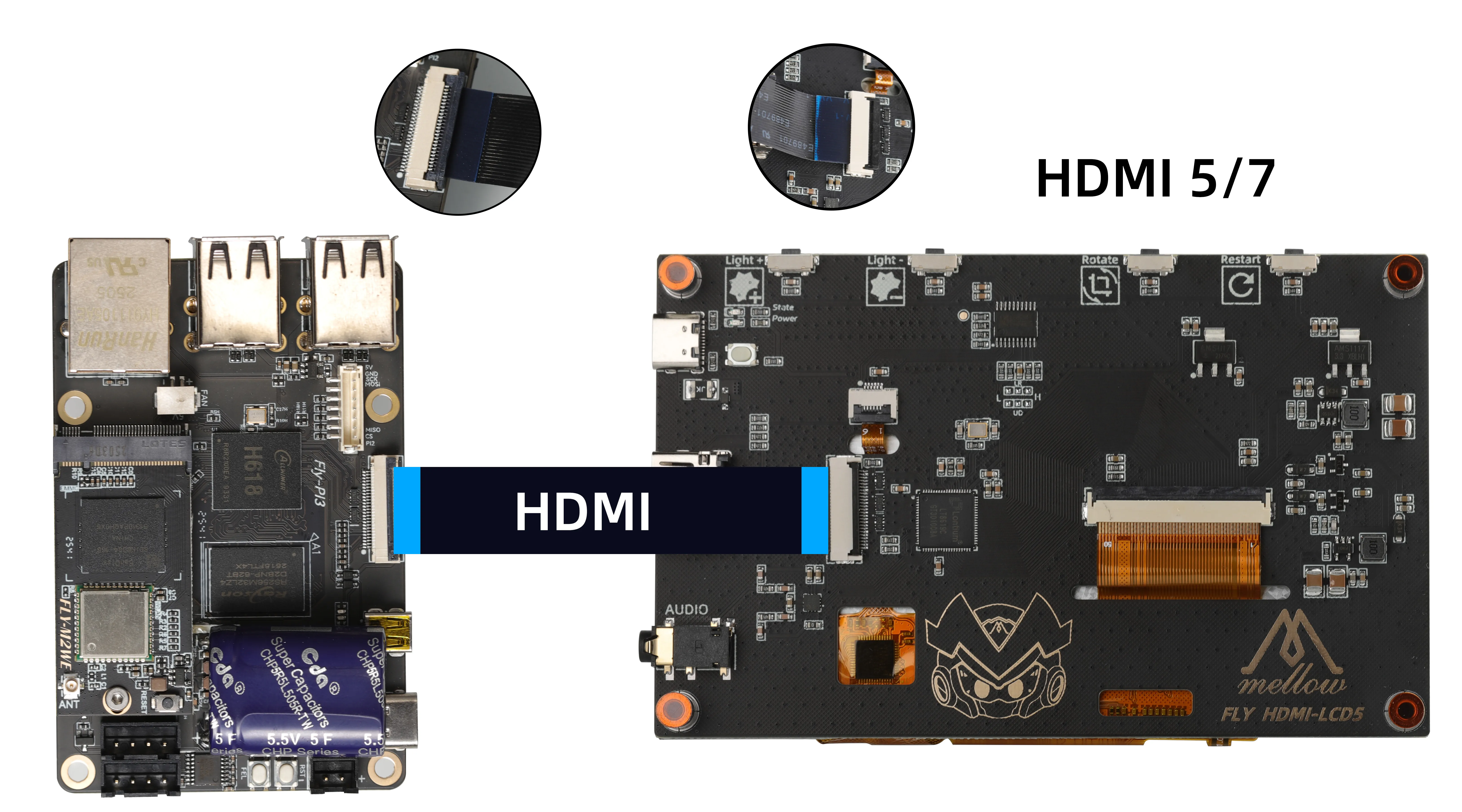

Wiring Method 2

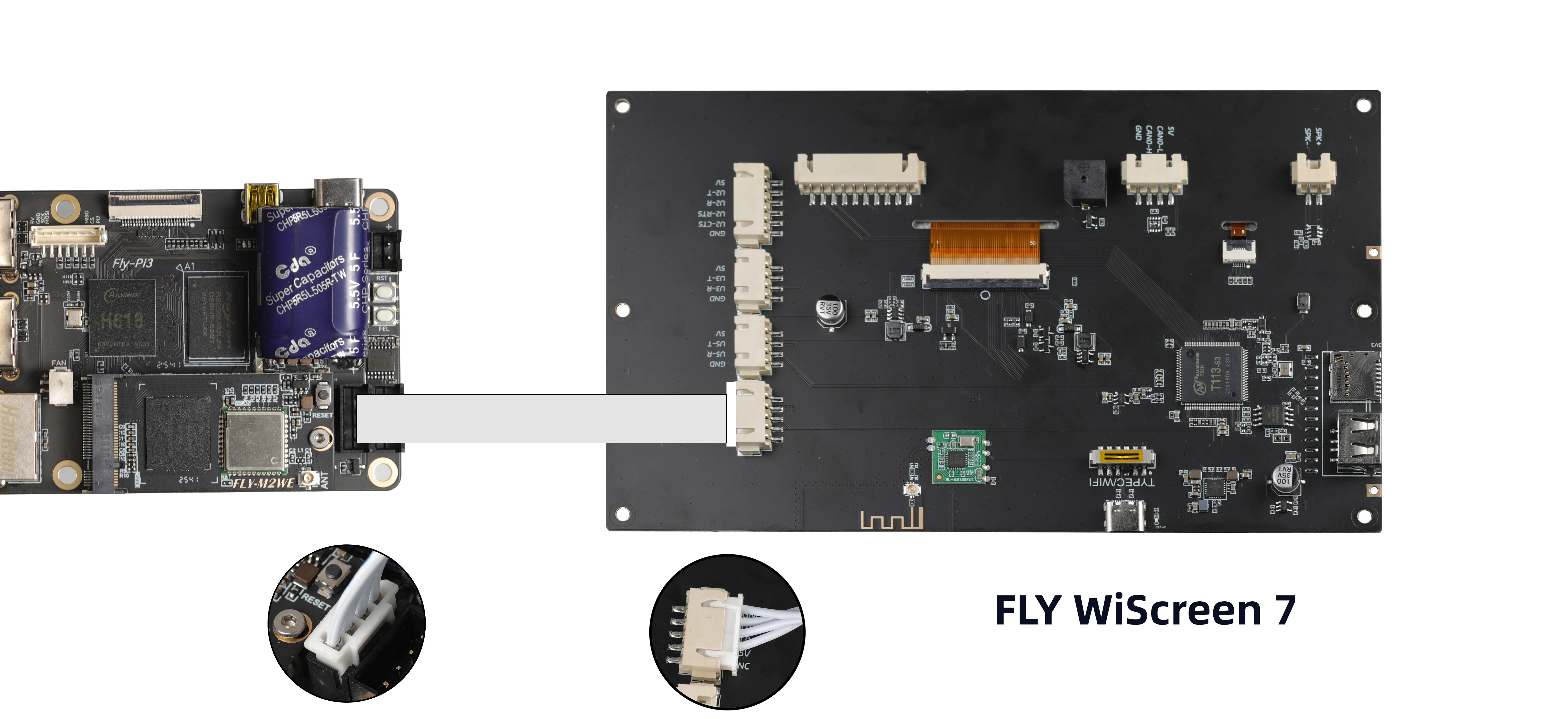

Serial Screen Wiring

Serial Screen Wiring

Screen Configuration

FLYOS-FAST System

FLYOS-FAST System Screen Configuration

1. Access the device IP address via browser, for example: http://192.168.6.110/

fluidd interface operation: Uncheck "Filter hidden files and folders"

mainsail interface operation: Check "Show hidden files"

2. Navigate to the displayed .flyos-config folder and locate the sys-config.conf configuration file

3. Edit the sys-config.conf file and select the appropriate configuration method according to your screen type:

TFT Resistive Screen Configuration

• Change the value after screen= to fly-tft-v2-r
• Change klipper_screen=0 to klipper_screen=1
• Below is a reference of the correctly modified configuration:

screen=fly-tft-v2-r

• Also change:

klipper_screen=1

TFT Capacitive Screen Configuration

• Change the value after screen= to fly-tft-v2-c
• Change klipper_screen=0 to klipper_screen=1
• Below is a reference of the correctly modified configuration:

screen=fly-tft-v2-c

• Also change:

klipper_screen=1

HDMI Screen Configuration

• Change the value after screen= to hdmi
• Change klipper_screen=0 to klipper_screen=1
• Below is a reference of the correctly modified configuration:

screen=hdmi

• Also change:

klipper_screen=1

Serial Screen Configuration

• Change the value after moon2uart= from 0 to 1
• Below is a reference of the correctly modified configuration:

moon2uart=1

4. Save the file after making changes and restart the system for the configuration to take effect
